Equipment

Tube Laser Cutting


Machine

Trumpf 7000

     -30' Infeed, 236" Outfeed

     -Capable of handling tubes 10" Round and 8" Square
       with up to 1/2" Wall Thickness





Laser Cutting Centers

Machine

Trumpf 2030 4K Fiber

Trumpf 3030 6K Fiber (Qty 2)

Trumpf 3060 CO2 4K Laser

Trumpf 3030 8K Fiber
Trumpf 3060 6K




Capabilities

1/2" x 60" x 100"

5/8" x 60" x 120"

3/4" x 84" x 240"

1" x 60" x 120"

3/4" x 96" x 240"

CNC High-Definition Plasma Cutting Centers

Machine

150A Komatsu Fine Plasma  (2)

150A Komatsu Fine Plasma

ESAB Twin Head Plasma

Capabilities

1" x 60" x 120"

1" x 72" x 144"

1 1/2" x 13' 6" x 40'

CNC High-Definition 5-Axis Plasma Cutting Centers

Machine

Hypertherm plasma torch on a Fanuc 5-Axis arm with a linear y-axis and rotating table.

     -10' between head and tail stock



CNC Oxy-Fuel Cutting Center

Machine

ESAB Dual Torch Table





Capabilities

3" x 72" x 144"

Robotic Welding

Machine

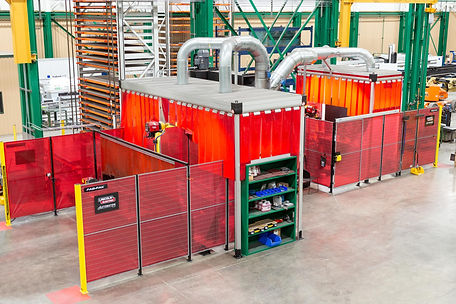

Lincoln Electric Twin Cell Welding Center (Qty. 2)


Submerged Arc Welding (Qty. 2)



Genesis Large Robotic Cell



Capabilities

Up to 10'







Up to 20'





17' Rotator

Welding Stations

Machine

90-Plus welding stations with positioners and 1-ton jib cranes to handle anything from small parts to large, heavy weldments.

CNC Machining

Machine

14 Vertical Milling Centers (Haas, Mazak, Mighty)

     -Table sizes from 24" x 46" and larger

     -Two large vertical bridge mills

      60" x 120" and 80" x 120"capacity



     -Open ended machining for long parts

     -Maximum part size depends on geometry and required
       machining

     -CAT 40 and CAT 50 machines are used



Lathes

Machine

8 Lathes with Automatic Bar Feed

     -Haas DS-30SSY - twin spindle with y-axis

     -Mori-Seiki NL 2500 with 3.00"

      through spindle

     -Mori-Seiki NL2500 twin spindle with

      y-axis 3.00"through spindle

     -HW 200B with 2.50" through spindle

     -HW 200C with 3.00" through spindle

     -HW 200BMC twin spindle with 3.50" through spindle

Press Brakes

Machine

1250 Ton Accurpress

1100 Ton Denner

750 Ton Accurpress

400 Ton Accurpress (Qty. 3)

400 Ton Accurpress

320 Ton Trumpf 5320

187 Ton Trumpf 5170

187 Ton Trumpf 5170 (ACB)

125 Ton Accurpress (Qty. 3)

65 Ton Accurpress

25 Ton Accurpress





Capabilities

24'

26'

20'

12'

14'

12'

10'

10'

6'

4'

4'



CNC Punch Presses

Machine

Trumpf 5000 w/ Automation

Trumpf TC5000





Capabilities

1/4" x 60" x 156"

1/4" x 60" x 144"

Shears & Rolls
Machine

Davi 14" Rolls

3/4" x 16' Accurshear

5/8" x 12' Accurshear

1/2" x 12' Accurshear

3/8" x 10' Cincinatti

1/4" x 8' Cincinatti



Tube Bending

Machine

BLM Elect 150 (CNC)

Pines #4 Tube Bender





Capabilities

6" Sch. 80 Max.

6" Sch. 80 Max.

Saws

5 Vertical Bandsaws, 4 with automatic feed, 2 fully programmable for miter and feed.







Overhead Cranes


Four 10 Ton Overhead Cranes

Three 5 Ton Overhead Cranes

1 Ton Jib Cranes at each hand welding station






FARO ARM


We can provide quality checks and FAI reports with our FARO Edge Arm.

Truck Fleet


Three flat bed tractors and three flat bed straight truck are available for delivery to nearby customers.

Deliveries for more distant customers will be arranged at customer's request
